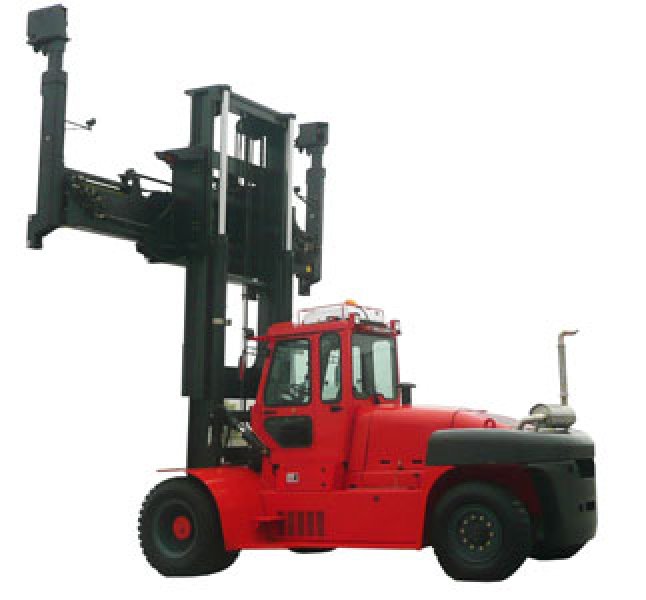

● HELI specially used home-made gearbox which is arranged as two at the front and two at the back. With the electro hydraulic reversing control, the operation is laborsaving ● HELI adopts the Meritor heavy-duty drive axle With inlaid disc braking which has reliable performance and stable quality, also and cost performances. ● Wide view mast + HELI home-made 20-foot container spreader. The spreader adopts high-quality steel which has high strength and nice view. The system has a lifting-protect function.
| Model | unit | CPCD160EC2-CZ/DZ (2 layers) | CPCD160EC3- CZ/DZ (3 layers) |
| Load capacity | kg | 4500 | 4500 |
| Load center | mm | 1220 | 1220 |
| Lifting height | mm | 6100 | 8100 |
| Mast angle(front/back) | 3/6 | 3/6 | |
| Overall width | mm | 3460 | 3460 |
| Wheel base | mm | 3650 | 3650 |
| Min. turning radius | mm | 4970 | 4970 |
| Max. lifting speed(with/without load) | mm/s | 330/400 | 330/400 |
| Max. travel speed(with/without load) | km/h | 30/30 | 30/30 |
