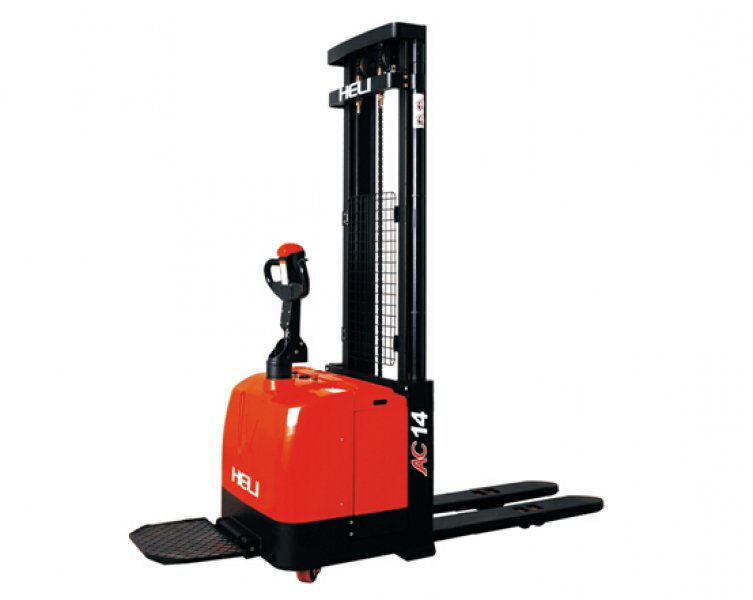

Electric Pallet Stacker CDD14

Configuration and Performance ● Electronic power steering system, light and low noise. ● Drive unit floating bodies with patent design. ● Two-way magnetic valve, three drop speed mode. ● AC Driving system, No carbon brush, maintenance free. ● USA CURTIS driving controller. ● Electromagnetic, regenerative braking system. ● Automatic lifting limit, proximity switch, long life. Safety ● Curve automatic deceleration devices, more safe. ● Vehicle decelerates automatically at higher position. ● Stepless speed control system, safe and quiet. ● Controller with Multiple automatic protection. ● Emergency reversing device and Emergency brake switch. ● High position automatic reduction device.

ModelunitCDD14CDD14CDD14
Configuration number920930980
TypeWide legsFork overFork over
Mast typeStandard 2-StageStandard 2-StageFull free 2-Stage
Operator typeWalkie / Stand onWalkie / Stand onWalkie / Stand on
Load Capacitykg140014001400
Load Centermm600600600
Standard lift heightmm1400/2000/2500/3000/3300/3600/40001400/2000/2500/3000/3300/3600/40002500/3000/3300
Fork size (length/width/thickness)mm1070/100/401150/185/551150/185/55
Overall lengthmm2005/24252050/24702050/2470
Overall widthmm1470856856
Drive motorKWAC1.5AC1.5AC1.5
Lift motorKWDC3DC3DC3
Steering motorKWDC0.15DC0.15DC0.15
ControllerCURTISCURTISCURTIS
Battery (voltage/capacity)V/Ah24/28024/28024/280
