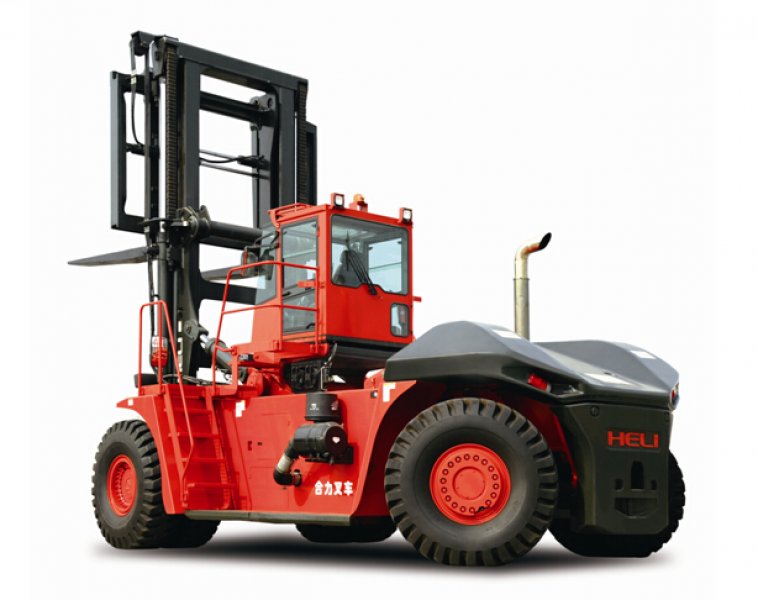

42-46T IC Forklift Truck

● The vehicles are designed by professional design company which is famous in Europe, and the vehicles conform to the requirements of EN1459, DIN15018 and ISO WD 22915-12.

● The latest VOLOV diesel (TAD952VE) engine which has advanced Engine Management System with CAN-BUS and conforms to the requirements of EU stage III is adopted. The turn off delay function can extend the engine’s service life.

● Intake system with cyclone-type air filter and main filter based two filtration function, can ensure the precision components of the engine works properly. All the engine accessories including air filter and muffler adopt the Donaldson’s product (U.S.).

● The latest TE27 electro-hydraulic control automatic gearbox of DANA company (U.S.) is adopted. Controlling with the CAN-BUS and adopts proportional valve technology, can reduce the impact when shifting and reversing , and improve the quality and reliability.

● The drive seat in the drive cab adopts full suspension and vibration proof structure and can be adjusted in all directions. Each operation pedals’ and handles’ position are designed according to the principle of Ergonomics and  can greatly reduce the labor intensity. High-mounted cab provided excellent all-round visibility. Air conditioner is standard. And the sliding type bonnet facilitates the maintenance and repair.

ModelunitCPCD420CPCD460
Rated Load Capacitykg4200046000
Load Centermm12001200
Power typeDieselDiesel
Driving styleSeatedSeated
Standard lift heightmm40004000
Fork size(Length/width/thickness)mm2440/300/1452440/300/145
Overall length(with forks)mm1037510375
Overall widthmm41204120
Overall Height(Mast)mm48504850
