Product Feature：

Comfortable

（1）Side battery as option, easy replacement

（2）Intelligent integration control handle, the operation is convenient and comfortable

（3）Proportional hydraulic control, working more stable, more precise

（4）Electronic power steering offering easy , flexible,  high efficient and mute operation

（5）Automatic  centering  function

safety

（1）Automatic deceleration  on curved road, more intelligent and safe.

（2）Standard configuration of warning light and  drive OPS system improve whole truck's safely

（3）Magnetic brake on driving axle,the truck can automatic parking in slope or flat

（4）Five independent braking systems

（5）Current regenerating brake when releasing acceleration handle shank

（6）Emergency brake activated by releasing foot switch

（6）Parking brake activated by pressing button on the panel

（7）Automatic activated Parking brake

（8）Emergency switch

Working efficiency

（1）Small turning radius makes steering flexible and easy

（2）Smaller load wheel, can be directly into the bottom of the shelf.

（3）The truck has fast driving and lifting speed, higher working efficiency.

（4）Three speed mode, high performance

（5）Larger battery capacity for longer single shift time

（6）Better loading capacity and stability at high position

Energy efficiency

（1）Proportional hydraulic system, the truck is more energy-efficient and has lower energy consumption.

（2）Save more than 80%  lighting energy with LED lights

（3）Motor regenerative braking can recycle more electric energy

  (4）Electronic steering, more efficient, higher work efficiency

Maintainability

（1）The door can be disassembled easily, contributes to quick and convenient maintenance.

（2）Outrigger with bolt type installation, convenient maintenance, cost saving



Wide view mast and device

（1）Has side shift, tilt, and fork reach funtions

（2）Newly designed wide-view mast and working device, enlarges operator’s view effectively when the forks backword and forword

（3）Lifting and dropping down with processing buffer and end buffer

（4）The forks backword with processing buffer and end buffer



Overhead guard

（1）Large arc shape of the overhead guard and grid tray with proper angle increase operator’s upward view

（2）Connected with car body suspension, shock buffering falling loads

（3）Without  front legs, improving work view



Comfort cab

（1）Optimal step height , ensure the comfort and avoid the risk of pallet truck forks tip intrusion

（2）Padded waist and arm supports

（3）Cushioned floorboard for fatigue-reducing

（4）The driver's body is fully protected whthin the truck contours



Displayer

（1）High quality meter displaying clearly the important operating data

（2）180°steering angle position display

（3）Display of battery power and fault code

（4）Working mode selection

（5）Hour meter

（6）Labor hour display

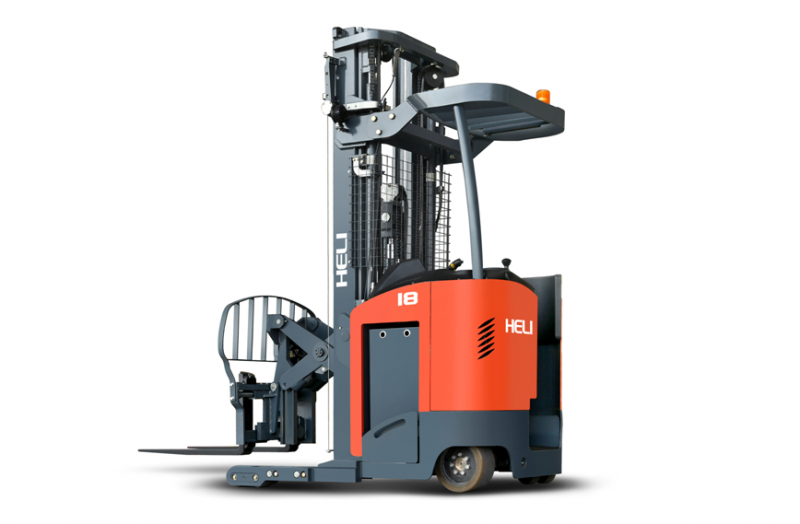

Model	unit	CQD16x1	CQD18x1
Configuration number		GB2R	GB2R
Power unit		Battery	Battery
Driving style		Stand-On	Stand-On
Load Capacity	kg	1600	1800
Load Center	mm	600	600
Wheel base	mm	1407	1457
Standard Lift Height	mm	5330	5330
Overhead Guard Height	mm	2320	2320
Truck body length Length (without forks)	mm	1815	1865
Truck body width	mm	1090	1090
Reach Distance	mm	600	600
Min Turning radius	mm	1695	1745
Total Weight ( with battery )	kg	3250	3500
Battery (voltage/capacity)	V/Ah	36/775	36/930
