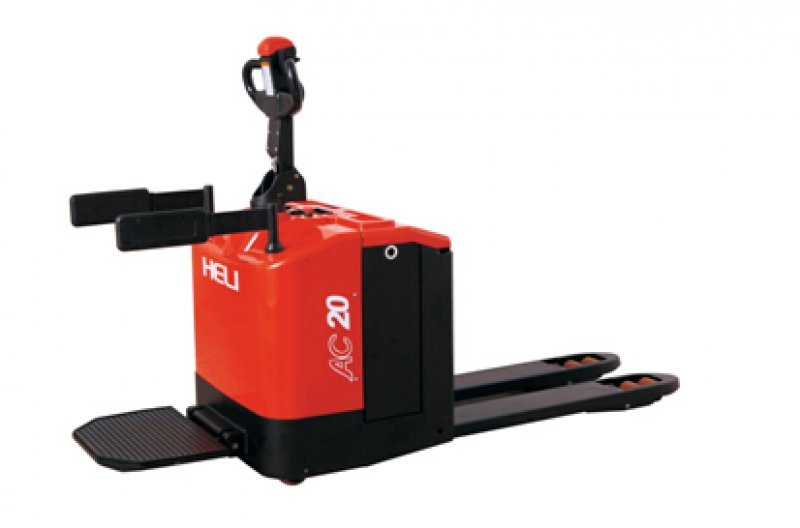

Configuration and Performance ● Electronic power steering system, light and low noise. ● Drive unit floating bodies with patent design. ● AC Driving system, No carbon brush, maintenance free. ● USA CURTIS driving controller. ● Electromagnetic, regenerative braking system. ● Automatic lifting limit, extend the life of the battery and motor. ● Side-way battery, easy to replace. Safety ● Curve automatic deceleration devices, more safe. ● Stepless speed control system, safe and quiet. ● Controller with Multiple automatic protection. ● Emergency reversing device and Emergency brake switch.
Model | unit | CBD20 | CBD20/25/28/30 | CBD20/25/28/30 |
Configuration number | 410 | 460 | 470 | |
Power unit | Battery | Battery | Battery | |
Operator type | Pedestrian / Rider On | Ride On | Ride On | |
Rated Capacity | kg | 2000 | 2000/2500/2800/3000 | 2000/2500/2800/3000 |
Load Center | mm | 600 | 600 | 600 |
Max.Lifting height | mm | 110 | 120 | 120 |
Overall length | mm | 1874/2247 | 1916/2333 | 1920/2335 |
Overall width | mm | 725 | 790 | 720 |
Overall height (with handle) | mm | 1475 | 1455 | 1455 |
Drive motor | KW | AC1.5 | AC1.5 | AC1.5 |
Lift motor | KW | DC1.2 | DC1.2 | DC1.2 |
Steering motor | KW | / | DC0.15 | DC0.15 |
Controller | CURTIS | CURTIS | CURTIS | |
Battery (voltage/capacity) | V/Ah | 24/210 | 24/270 | 24/280 |
