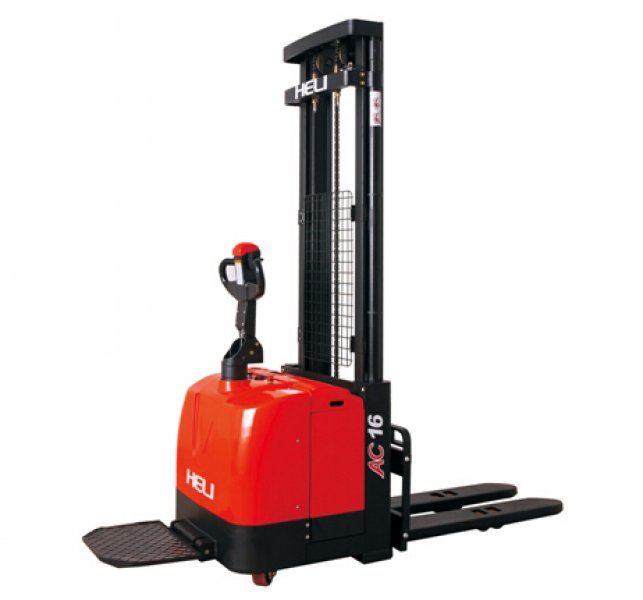

Configuration and Performance
● Electronic power steering system, light and low noise.
● Drive unit floating bodies with patent design.
● Two-way magnetic valve, three drop speed mode.
● AC Driving system, No carbon brush, maintenance free.
● USA CURTIS driving controller.
● Electromagnetic, regenerative braking system.
● Automatic lifting limit, proximity switch, long life.
Safety
● Curve automatic deceleration devices, more safe.
● Vehicle decelerates automatically at higher position.
● Stepless speed control system, safe and quiet.
● Controller with Multiple automatic protection.
● Emergency reversing device and Emergency brake switch.
● High position automatic reduction device.
Model | unit | CDD16 | CDD16 | CDD16 | CDD16 | CDD16 | CDD16 |
Configuration number | D920 | 960 | 360 | D930 | 950 | 350 | |
Type | Wide legs | Wide legs | Wide legs | Narrow legs | Narrow legs | Narrow legs | |
Mast type | Standard 2-Stage | Full free 3-Stage | Full free 3-Stage | Standard 2-Stage | Full free 3-Stage | Full free 3-Stage | |
Operator type | Walkie / Stand on | Walkie / Stand on | Walkie / Stand on | Walkie / Stand on | Walkie / Stand on | Walkie / Stand on | |
Load Capacity | kg | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 |
Load Center | mm | 600 | 600 | 600 | 600 | 600 | 600 |
Standard lift height | mm | 1400/2000/2500/3000/3300/3600/4000 | 3700/3900/4200/4500/4700/5000 | 5300/5500/5800 | 1400/2000/2500/3000/3300/3600/4000 | 3700/3900/4200/4500/4700/5000 | 5300/5500/5800 |
Fork size(length/width/thickness) | mm | 1070/100/40 | 1070/100/40 | 1070/100/40 | 1150(1220)/185/55 | 1150(1220)/185/55 | 1150(1220)/185/55 |
Overall length | mm | 2005/2425 | 2073/24932073/2493 | 2073/2493 | 2050/2470 | 2105/2525 | 2105/2525 |
Overall width | mm | 1470 | 1470 | 1470 | 856 | 957 | 957 |
Drive motor | KW | AC1.5 | AC1.5 | AC1.5 | AC1.5 | AC1.5 | AC1.5 |
Lift motor | KW | DC3 | DC3 | DC3 | DC3 | DC3 | DC3 |
Steering motor | KW | DC0.15 | DC0.15 | DC0.15 | DC0.15 | DC0.15 | DC0.15 |
Controller | CURTIS | CURTIS | CURTIS | CURTIS | CURTIS | CURTIS | |
Battery (voltage/capacity) | V/Ah | 24/280 | 24/280 | 24/280 | 24/280 | 24/280 | 24/280 |
