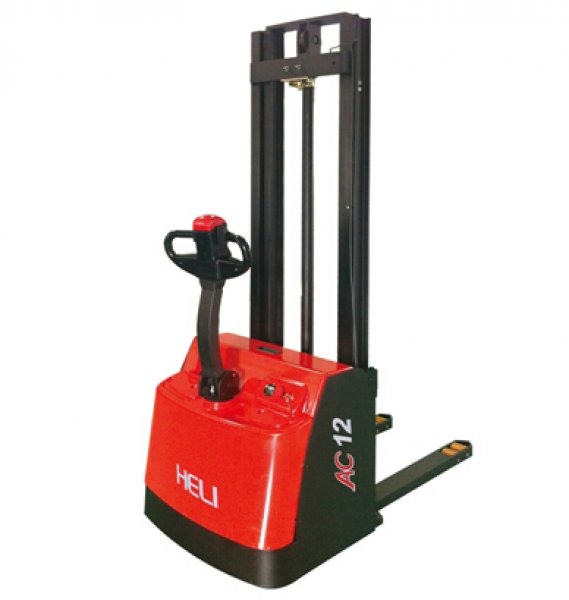

Configuration and Performance ● Electronic power steering system, light and low noise. ● Drive unit floating bodies with patent design. ● Two-way magnetic valve, three drop speed mode. ● AC Driving system, No carbon brush, maintenance free. ● USA CURTIS driving controller. ● Electromagnetic, regenerative braking system. ● Automatic lifting limit, proximity switch, long life. Safety ● Curve automatic deceleration devices, more safe. ● Vehicle decelerates automatically at higher position. ● Stepless speed control system, safe and quiet. ● Controller with Multiple automatic protection. ● Emergency reversing device and Emergency brake switch. ● High position automatic reduction device.
Model | unit | CDD12 |
Configuration number | 030 | |
Type | Fork over | |
Mast type | Standard 2-Stage | |
Operator type | Walkie / Stand on | |
Load Capacity | kg | 1200 |
Load Center | mm | 600 |
Standard lift height | mm | 2000/2500/3000/3300/3600/4000 |
Fork size(length/width/thickness) | mm | 1150/185/55 |
Overall length | mm | 1993/2413 |
Overall width | mm | 812 |
Drive motor | KW | AC1.5 |
Lift motor | KW | DC3 |
Steering motor | KW | DC0.15 |
Controller | CURTIS | |
Battery (voltage/capacity) | V/Ah | 24/210 |
