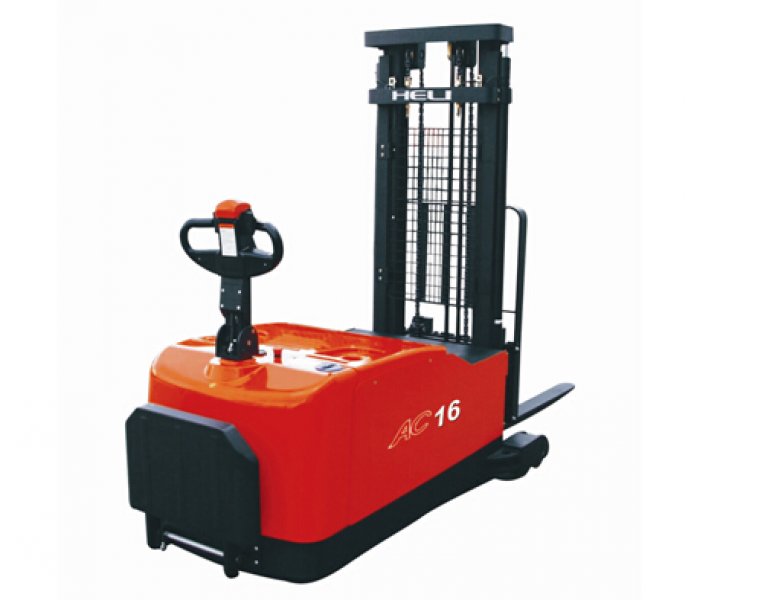

Counterbalanced Stacker CDD12~16

Configuration and Performance

● Electronic power steering system, light and low noise.

● Two-way magnetic valve, three drop speed mode.

● AC Driving system, No carbon brush, maintenance free.

● USA CURTIS driving controller.

● Electromagnetic, regenerative braking system.

● Automatic lifting limit, proximity switch, long life.

Safety

● Curve automatic deceleration devices, more safe.

● Vehicle decelerates automatically at higher position.

● Stepless speed control system, safe and quiet.

● Controller with Multiple automatic protection.

● Emergency reversing device and Emergency brake switch.

● High position automatic reduction device.

ModelUnitCDD12CDD12CDD16CDD16
Configuration number970910D970970
TypeCounterbalancedCounterbalancedCounterbalancedCounterbalanced
Mast typeStandard 2-StageFull free 2-StageStandard 2-StageFull free 3-Stage
Operator typeWalkie / Stand onWalkie / Stand onWalkie / Stand onWalkie / Stand on
Load Capacitykg1200120016001600
Load Centermm500500500500
Standard lift heightmm1400/2000/2500/3000/3300/36002500/3000/33001400/2000/2500/3000/3300/3600/40003700/3900/4200/4500
Fork size(length/width/thickness)mm1070/100/401070/100/401070/100/401070/100/40
Overall lengthmm2502/30122502/30122942/33622942/3362
Overall widthmm1015101510151015
Drive motorKWAC1.5AC1.5AC1.5AC1.5
Lift motorKWDC3DC3DC3DC3
Steering motorKWDC0.15DC0.15DC0.15DC0.15
ControllerCURTISCURTISCURTISCURTIS
Battery (voltage/capacity)V/Ah24/27024/27024/27024/270
